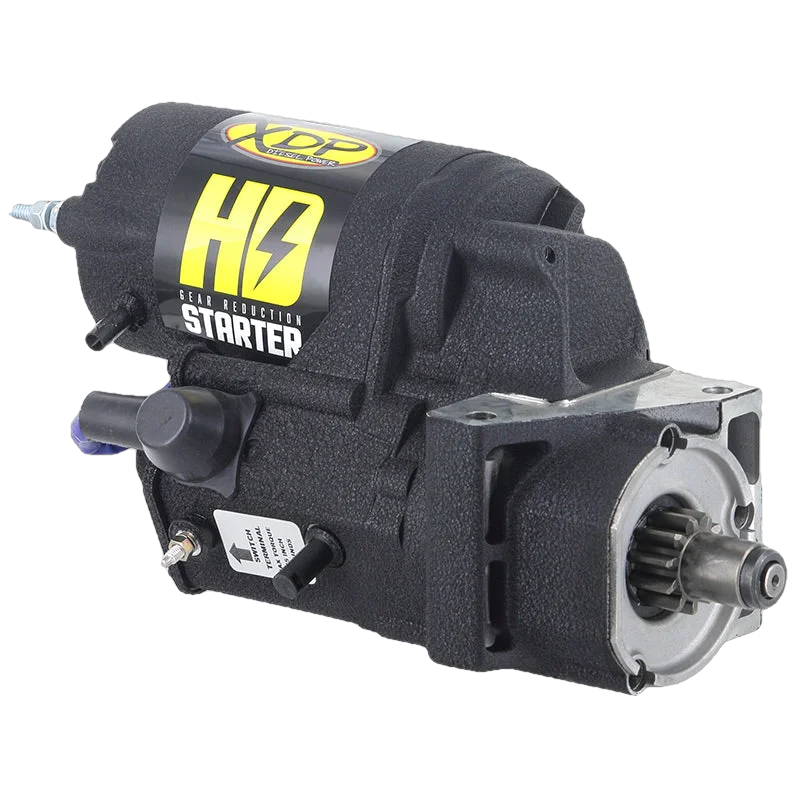

Wrinkle Black HD Gear Reduction Starter

Features & Details:

• HD Gear Reduction Design
• Wrinkle Black Finish
• Increased Durability
• Made In The USA!
• 2 Year / Unlimited Mileage

Description:

You can rely on the XDP Wrinkle Black HD Gear Reduction Starter XD250 to get your 1982-2000 GM 6.2L/6.5L GM Diesel running in the most extreme environments. XDPs HD Gear Reduction Starters are faster, stronger, and more durable than your factory starter. This gives you the ability to turn over even the most aggressive diesel engines.

XDP's HD Gear Reduction Starters feature an efficient motor that is faster, more powerful, and draws less amperage. The Gear Reduction Design produces more torque than a factory unit, at about a third of the size. This not only reduces weight, but also makes a more compact design for easier installation. Each starter comes pre-tested, ready for installation and features a durable "Wrinkle Black" finish for corrosion resistance and aesthetics.

Tech Notes:

Depending on the conditions, a starter can pull up to 500 amps. These levels of amperage stress ALL components in the circuit including cables, terminals, batteries, and more. Problems with these components can be difficult to diagnose as they appear fine at rest and under a light load, but generate high resistance under heavy amperage draws. This results in low voltage to the starter while cranking, causing heavier amperage draw, and increased heat leading to starter failure. Batteries, cables and additional components should be checked and serviced regularly. Voltage measured at the starter during cranking should always be above 11V DC. Starter heat shields are not required, but are an excellent idea for heat protection.

The knurling on the factory mounting bolts should provide a snug fit at the time of installation. If they are not snug in the bolt holes, the bolts should be replaced.

The factory support bracket should also be installed. If that is missing, it should also be purchased.

In some instances, the battery cable may have to be re-routed to reach the battery stud on the starter.
