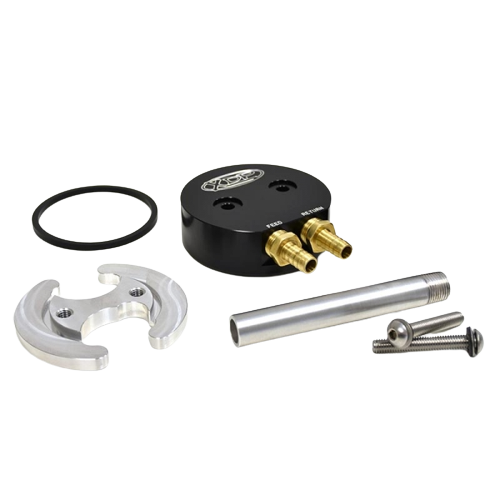

Fuel Tank Sump

Features & Details:


  • Built-In Drain Plug
  • No Tank Drop Installation
  • Large Opening for Unrestricted Fuel Flow
  • Made From Aircraft Grade T6 Billet Aluminum
  • Works Great With Stock & Aftermarket Fuel Tanks
  • 2 Year / Unlimited Mileage



What sets the this sump apart from the other sumps on the market is the built-in return. Installation of most aftermarket fuel systems require you to cut and "tee" into your factory fuel filler neck. In some cases, modifications to the filler neck can cause leaks, and also cause fuel pumps to "click off" when refueling. Using the built-in return port, you can easily route return fuel back to the tank without having to modify any other components for a clean and easy installation. For optimal fuel quality, the XDP Sump features a stand pipe that places the returned fuel above the fuel feed. This design eliminates the possibility of feeding your engine the aerated return fuel coming back to your fuel tank. Includes barbed fittings for 1/2" hose.

The XDP Fuel Tank Sump with Built-In Fuel Return provides you with a perfect option to maximize fuel delivery, and customization when installing your aftermarket fuel system. Avoid the common 1/4 tank issues associated with in-tank draw straws used with fuel systems such as AirDog, FASS and many others. This features a one-hole design that only requires drilling a single 3" hole for installation. A machined groove for the o-ring gasket ensures a leak-free seal, and the inner-ring is designed to fit into the bottom of the tank without requiring you to remove it from the truck.
