Super HD Ball Joint Kit 104 - Ford / Dodge Ram OBS

Super HD Ball Joint Kit 104 - Ford / Dodge Ram OBS

SKU KIT104

Regular price $ 240.00
Regular price Sale price $ 240.00

Super HD Ball Joint Kit



Features & Details:

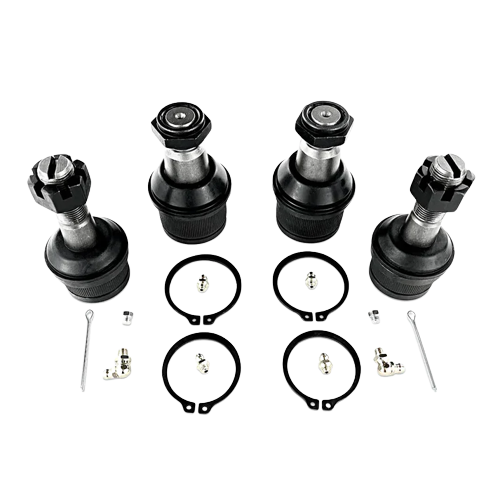

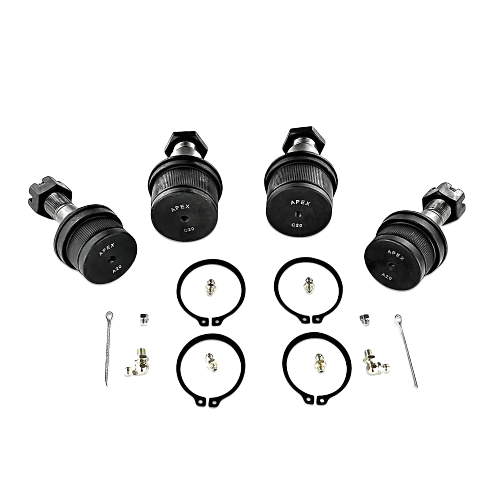

This kit contains:

2 Upper and 2 Lower Ball Joints.

What It Fits:
Dodge RAM 2500 (1994-1999) 4WD
Dodge RAM 3500 (1994-1999) 2WD or 4WD
Ford Bronco (1980-1996) 2WD or 4WD
Ford Excursion (2000-2005) 4WD
Ford F-150 (1980-1996) 4WD
Ford F-250 (1980-2009) 4WD
Ford F-250 HD (1997) 4WD
Ford F-250 Super Duty (1999-2019) 4WD
Ford F-350 (1980-2015) 4WD
Ford F-350 Super Duty (1999-2016) 4WD
Ford F-450 Super Duty (1999-2016) 2WD or 4WD
Ford F-550 Super Duty (1999-2004) 2WD or 4WD

Description:

HOUSING
  • SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
  • Knurled Housings: The preferred design for aftermarket installations.
  • CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.
BALL STUDS
  • SAE 4140 hot forged Chromoly Ball Studs: For the strongest possible metallurgy.
  • Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
  • Polished Ball Studs: Are built like an anti-friction bearing with extremely precise tolerances.
  • Rolled Threads: Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
  • Step Threads : allows for very easy movement of hardware on install and superior holding when torqued (installer choice).
BEARING DESIGN
  • Military Grade Acetal Bearing: The same bearing material spec'd by the US military for Hummer ball joints. This material is: dimensionally stable (doesn't expand or contract with hot or cold, water or oil absorption), it can be polished smooth as steel, is anti-friction, Doesn't wear itself out under load like metal on metal, and can take an absolute pounding.
BOOTS
  • CR Rubber Boots: The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold.
  • UPPER: Internal Seal Boot: The boot is coined onto the ball joint, for superior sealing against contaminants.
  • LOWER: Integral Pancake Boot
FINISH
  • Phosphate Finish: Extremely durable. Double coated. Rugged look.
HARDWARE
  • Grade 8 - Class 10.9 Hardware: Superior tensile strength
  • UPPER: Castle Nut: Industry standard where high vibration loads occur.
  • LOWER: Tension Nut: Very strong hold in most applications
LUBRICATION
  • Pre threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
  • Greaseable: Because it should be.
  • Pre-Greased: Just in case you forget, we have you covered.
  • Gull Winged Grease Grooves : Allows for improved lubrication disbursement around the ball stud.
  • Zerk Fittings : Included for every application.
SPECIAL FEATURES
  • Custom Features: UPPER: Multiple Zerk fittings included for each application.
