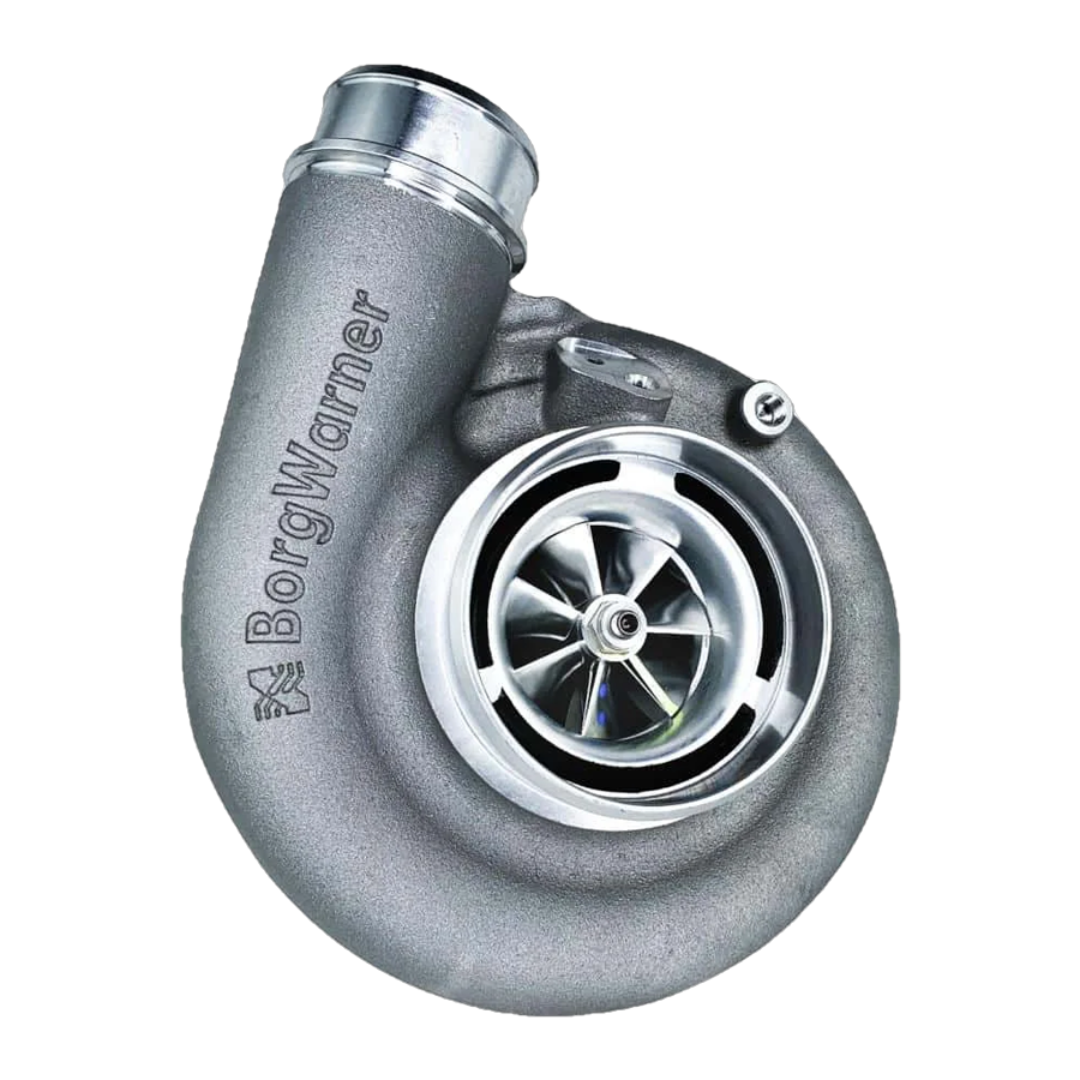

S369-SXE Supercore Turbo

Features & Details:

• Borg Warner 4" Inlet / 2.5" Outlet Ported Compressor Housing
• Integrated Speed Port (Sensor Not Included)
• 69/91mm Billet Compressor Wheel w/ Extended Tip
• 73/80mm Turbine Wheel
• 360 degree thrust bearing
• Compressor cover integrated speed sensor port and pre-machined boost port
• Flexible compressor cover outlet options (S300SX-E only)
• Forged milled (billet) compressor wheels with extended tip technology
• Optimized compressor stage aerodynamics
• Interchangeable with existing SX turbine housings

Description:

Borg Warner Supercore assembly consists of the entire turbocharger minus turbine housing. All SX-E Supercores come with turbine housing mounting hardware, clamp plates, cap screws and mounting gaskets. Speed sensor and turbine outlet V-band are not included. Choose a turbine housing from Borg Warner factory housings as well as AGP custom cast performance housings. Borg Warner 4" Inlet 2.5" outlet compressor housing with port shroud map width enhancement, pre tapped for speed sensor and pressure port.

The bearing housings are not water-cooled and have a 1/4"NPT oil inlet. The oil drain is the standard T3-T4.
