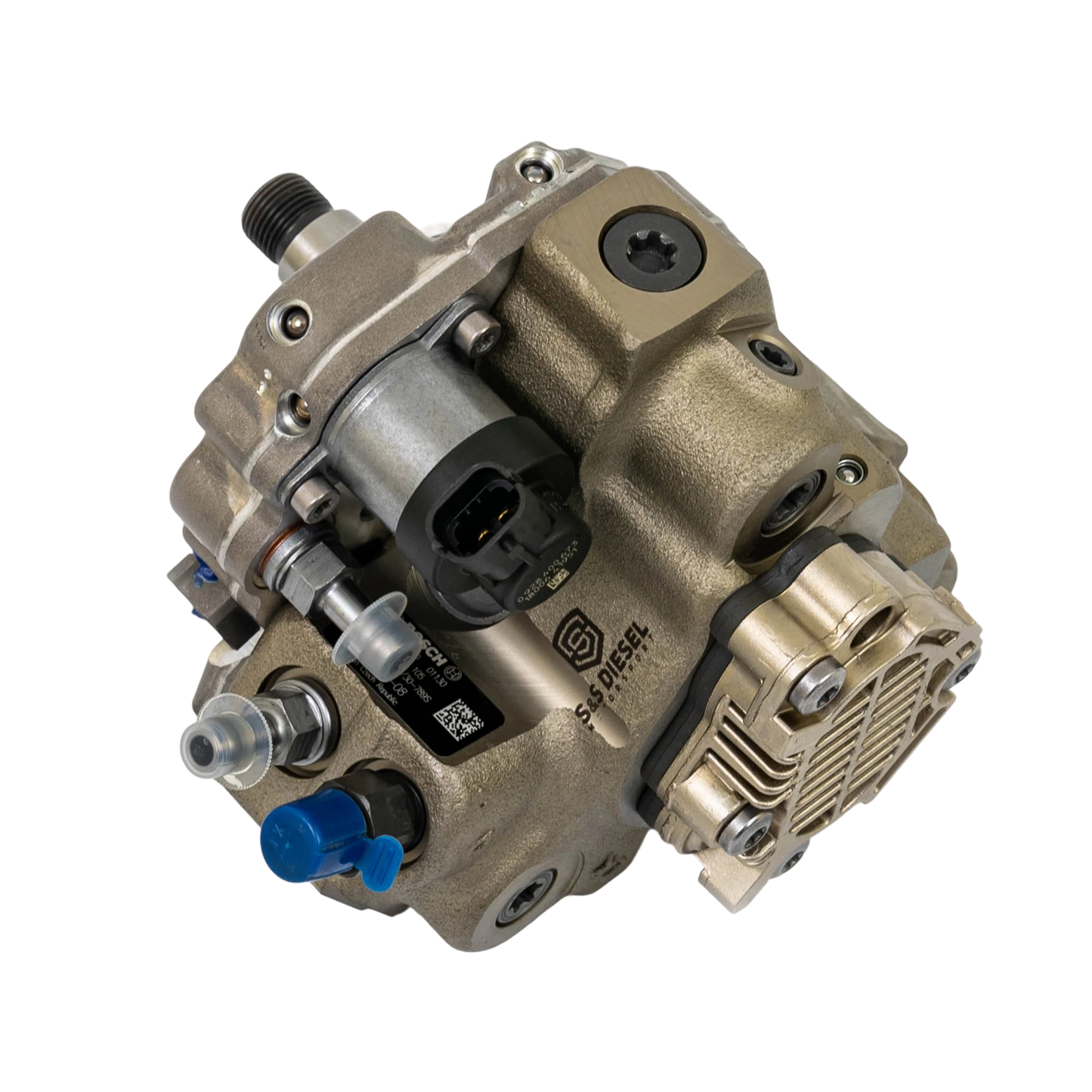

Duramax 12mm CP3

1,590 mm3/rev displacement

Description:

*Will require custom tuning for 2001-2005 LB7 and LLY models

Duramax CP3 pumps are built from brand new Bosch LBZ-based pumps, and then modified to suit various fueling requirements from 500 to 1,400 horsepower in a single pump configuration. Every S&S CP3 pump will have a data sheet in the box that is crucial for proper calibration.

S&S CP3 pumps are internally modified, besides just increasing displacement, to efficiently deliver fuel well beyond the peak RPM of most diesel engines. Why? Some competition engines need high-rpm fueling, so S&S makes it a standard. The competition CP3 pumps might not be for everyone, but they're a wise choice for those who want the best... and the data above backs it up.

Applications:

• 2001 - 2015 Chevy Silverado 2500

• 2001 - 2015 Chevy Silverado 3500

• 2001 - 2015 GMC Sierra 2500

• 2001 - 2015 GMC Sierra 3500

The SP3000 is a single mechanical solution that replaces the small factory supply pump, and will flow up to 2,791 l/hr, at pressure. It is designed to be used with the S&S Regulated Filter Head and Gear Pump Delete kits to create a Fuel Delivery System (FDS) capable of supporting up to four 14mm CP3 (1,850 mm3 /rev displacement) high pressure pumps.

-Flow Rate – 2,791 liters per hour
-Max Pressure – 400 psi
-Volume – 13,000 mm3/rotation
-Weight – 1,271 g
-Aluminum and Steel Construction
-Inlet Fitting Sized For Initial Flow Control
