S&B Tanks 60 Gallon Replacement Tank - Crew Cab Short Bed - 6.7 POWERSTROKE (17-22)

S&B Tanks 60 Gallon Replacement Tank - Crew Cab Short Bed - 6.7 POWERSTROKE (17-22)

SKU SBT10-1004

Regular price $ 1,249.00
Regular price Sale price $ 1,249.00

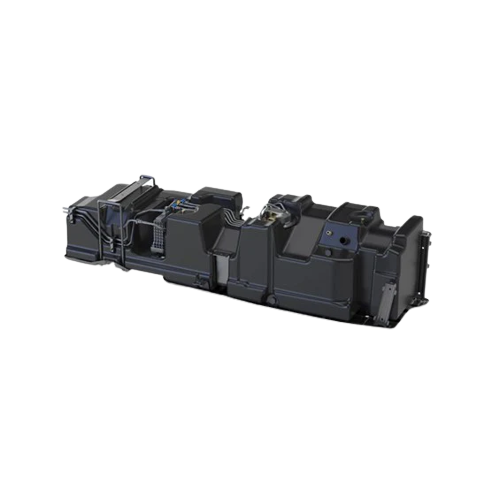

S&B Tanks 60 Gallon Replacement Tank


This tank hold approximately 60 gallons of fuel. The float's empty position in the S&B Tank is the same as the OEM tank. Since the bottom surface area on the S&B Tank is larger, the 60 Gallon tank with have a greater fuel reserve.

According to the Ford TSB 17-0046. If your truck has a build date prior to 3-20-17. Replace the fuel Level Sender Resistor Card Assembly with Ford part # HC3Z-9A299-N.

More Fuel. Less Hassle.

Holds 5 more gallons than competitor tanks!

S&B's 60-gallon fuel tank directly replaces the OEM 34-gallon tank without any cutting, drilling, or special modifications. This makes for a trouble-free, faster installation process. S&B's replacement fuel tank holds 5 more gallons than competitor tanks, allowing you to save time, go further, and get more out of your truck! Go big or go home!


We teamed up with EZ Lynk to make adjusting your Distance to Empty (DTE) free and easy.


If you don't have a skid plate on your truck already, no problem! But if you do, unlike other competitor tanks, we designed the S&B Tank to allow you to reuse the factory skidplate. We also designed a smaller, factory style skidplate to cover the front of the larger S&B Tank.

Using a FASS / Airdog
Lift Pump?

Add S&B's Sending Unit!

S&B Tanks work with OEM and aftermarket lift pumps. Aftermarket lift pumps(FASS & Airdog) provide more fuel to your diesel engine but face issues at a 1/4 tank fuel level. The S&B Sending Unit allows you to drive to empty with your aftermarket lift pump. Completely plug and play, with no need to modify your OEM tank or sending unit.

WARNING For Those Using Auxiliary Fuel Tanks

On S&B and OEM diesel fuel tanks, there are one or more rollover valves. The rollover valve uses a float/weight to close the valve when the float is immersed in fuel. This prevents fuel leakage in the event of a rollover. Gravity feed tanks or electronically controlled feed tanks can overfill the S&B or OEM tank. If/when the tank is overfilled, the rollover valves will prematurely close. Without the required vapor space in the tank, this violates the “overfill restriction” requirement of 49 CFR 393.76(12)(i). An overfilled tank can lead to a pressurized fuel tank, leaking, and tank failure.

Therefore, the use of a gravity feed tank or electronically controlled transfer tanks (that allow the S&B tank to overfill) in conjunction with a S&B Tank is dangerous and will void the S&B Tank warranty.

S&B Tank Features:

  • 60 Gallon Capacity
  • Anti-wave Internal Baffles
  • Reuses Factory Sending Unit
  • Integrated Transfer Pump Fittings
  • Patent-Pending Integrated Fuel Sump
  • Double Coated Stainless Steel Hardware
  • High-Density Crosslink Polyethylene Construction
  • Direct Bolt-In Installation - No Modifications Needed
