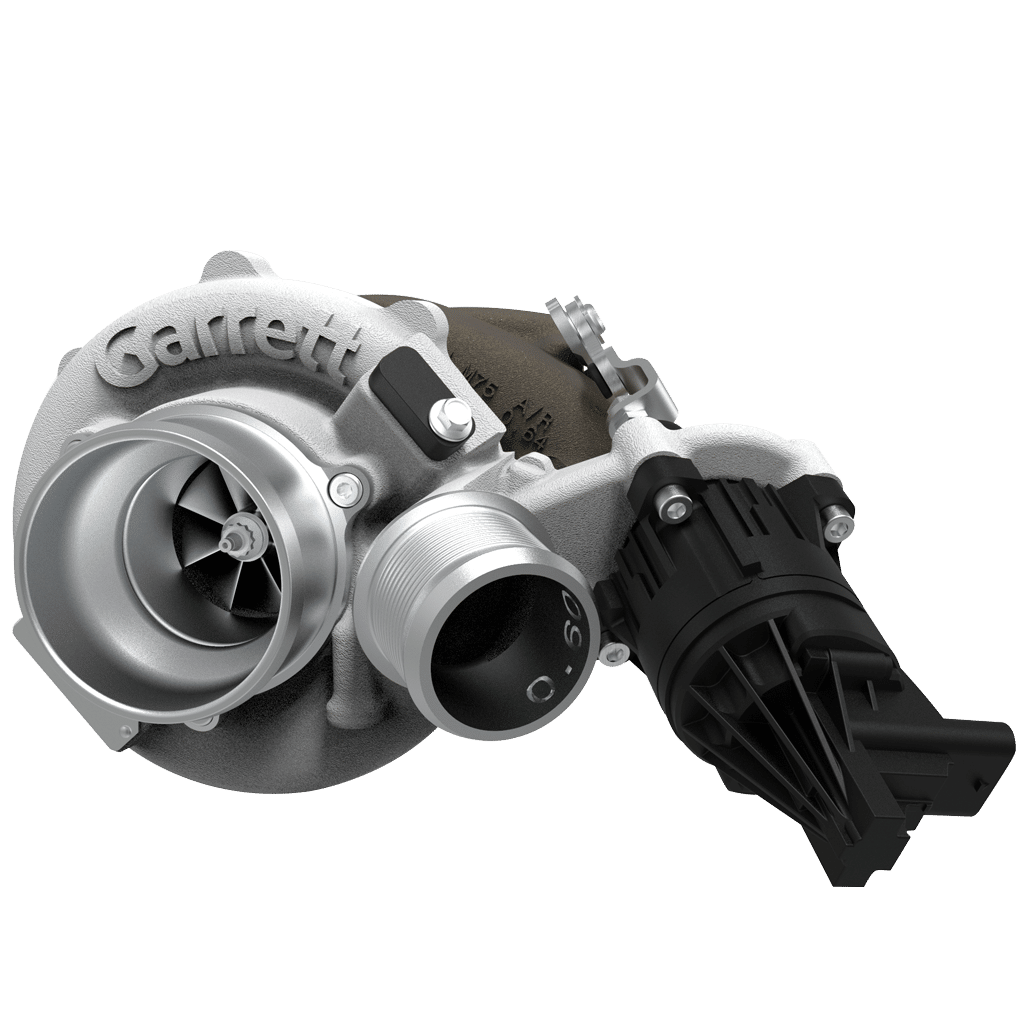

Garrett Powermax Turbocharger Upgrade (Rightside) - 3.5 ECOBOOST (2017+)

$ 1,552.98
SKU 901655-5001W

Garrett PowerMax Stage 2

Features & Details:

  • Direct-fit Stage 2 upgrade
  • Compressor housing inlet (2.75”) is larger than stock to allow for increased flow and optimized surge port
  • Adapter for stock inlet tube included with turbo kit
  • 700+ BHP capability*
  • Compressor Info:
    •Inducer: 45mm
    •Exducer: 60mm
    •Trim: 57
    •A/R: 0.60
  • Turbine Info:
    •Inducer: 50mm
    •Exducer: 46mm
    •Trim: 84
  • Complete assembly with calibrated electric actuator
  • Billet compressor wheel with 54% increased flow
  • Inconel turbine wheel with 52% increased flow
  • Modern compressor and turbine wheel aero
  • Tuned ported shroud for optimal compressor surge and choke performance

Description:

The Garrett PowerMax Stage 2 turbocharger upgrade for the 2017, 2018, 2019, and 2020 F-150 and Raptor 3.5L Ecoboost platform is engineered to increase engine performance capability while maintaining OEM installation specifications. This direct drop-in Stage 2 upgrade provides 54% more flow than OEM and will support up to 700+ BHP *. Improvements in compressor efficiency and flow can be attributed to the 60mm fully-machined compressor wheel. Turbine flow is increased by 52% compared to OEM with a 50mm Inconel turbine wheel and larger 0.60 A/R turbine housing. This turbocharger kit comes fully assembled, calibrated, and is outline interchangeable with the OE hardware to ensure a perfect fit every time.
