Apex Chassis - Pitman Arm/ 3 Groove - Chevy/GMC

Apex Chassis - Pitman Arm/ 3 Groove - Chevy/GMC

1 3

Apex Chassis - Pitman Arm/ 3 Groove - Chevy/GMC

Apex Chassis - Pitman Arm/ 3 Groove - Chevy/GMC

SKU PA109

$ 70.00
$ 70.00

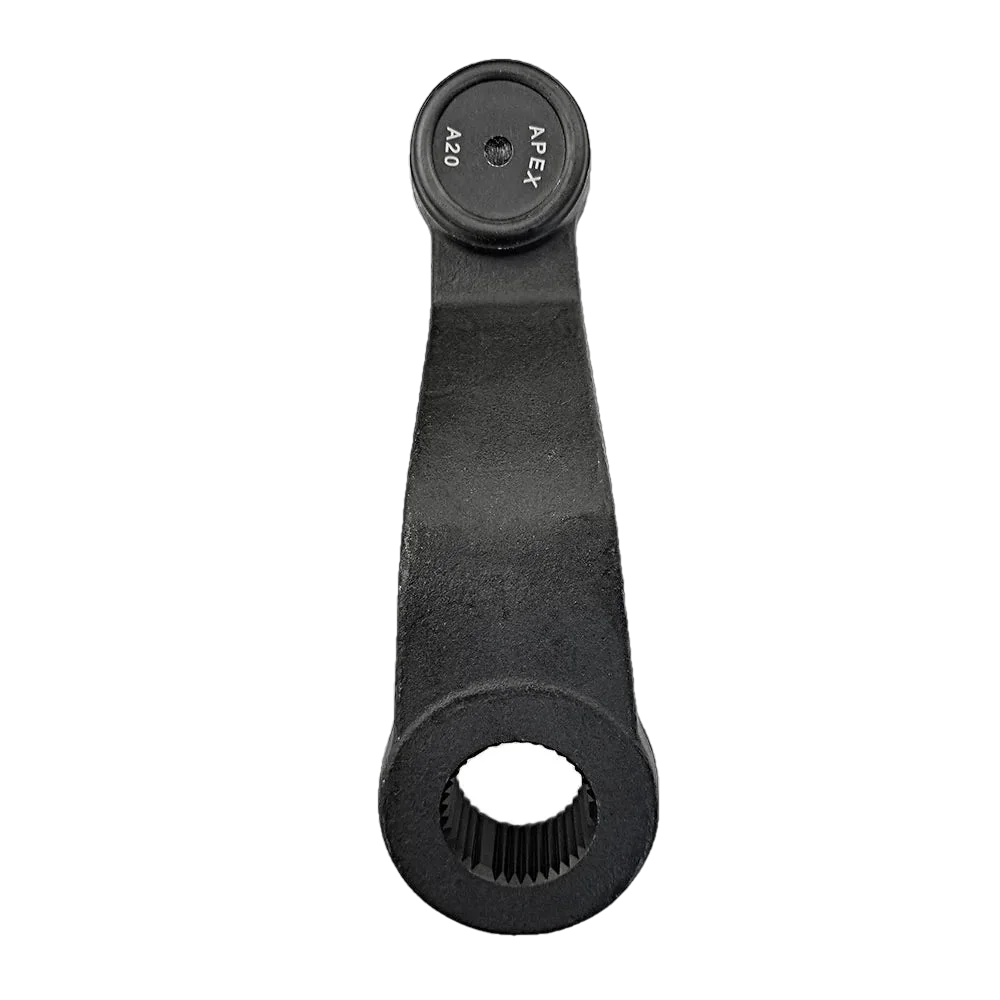

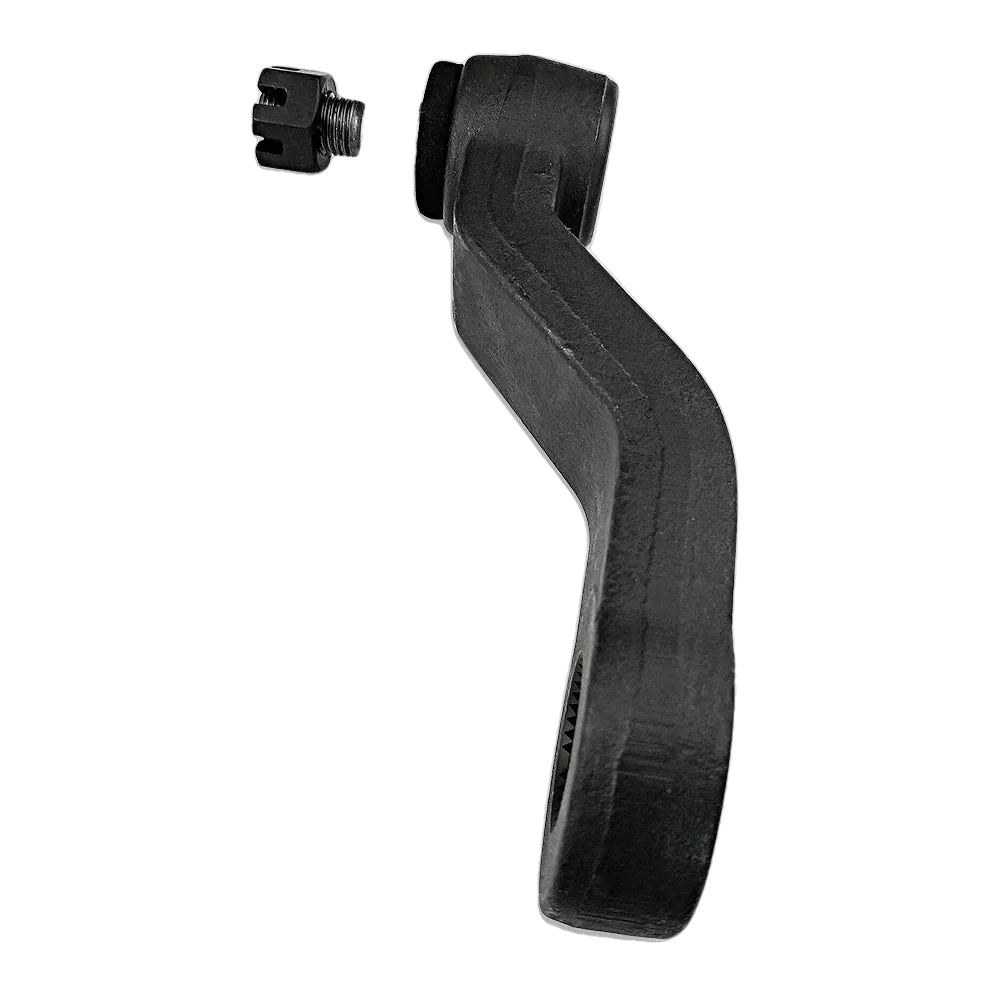

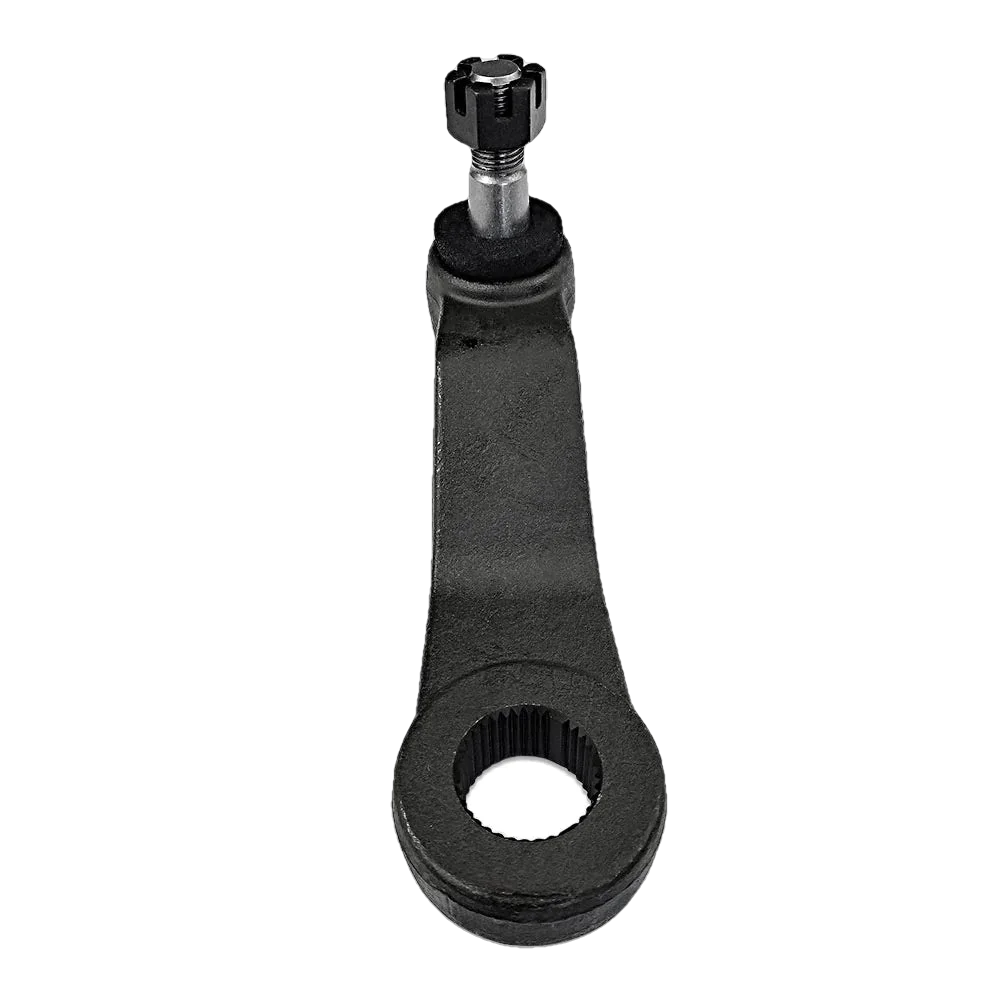

Pitman Arm 3 Groove

Features & Details:

What It Fits:

  • Cadillac Escalade (2002-2006) 2WD or 4WD
  • Chevrolet Avalanche 2500 (2002-2006) 2WD or 4WD
  • Chevrolet Express 2500 (2003-2016) 2WD
  • Chevrolet Express 3500 (2003-2016) 2WD
  • Chevrolet Express 4500 (2009-2015) 2WD
  • Chevrolet Silverado 1500 (2001-2006) 2WD or 4WD
  • Chevrolet Silverado 1500 Classic (2007) 2WD or 4WD
  • Chevrolet Silverado 1500 HD (2001-2006) 2WD or 4WD
  • Chevrolet Silverado 1500 HD Classic (2007) 2WD or 4WD
  • Chevrolet Silverado 2500 (1999-2004) 2WD or 4WD
  • Chevrolet Silverado 2500 HD (2001-2010) 2WD or 4WD
  • Chevrolet Silverado 2500 HD Classic (2007) 2WD or 4WD
  • Chevrolet Silverado 3500 (2001-2006) 2WD or 4WD
  • Chevrolet Silverado 3500 Classic (2007) 2WD or 4WD
  • Chevrolet Silverado 3500 HD (2007-2010) 2WD or 4WD
  • Chevrolet Suburban (2000-2013) 2WD or 4WD
  • GMC Savana 2500 (2003-2016) 2WD
  • GMC Savana 3500 (2003-2016) 2WD
  • GMC Savana 4500 (2009-2016) 2WD
  • GMC Sierra 1500 (1999-2006) 2WD or 4WD
  • GMC Sierra 1500 Classic (2007) 2WD or 4WD
  • GMC Sierra 1500 HD (2001-2006) 2WD or 4WD
  • GMC Sierra 1500 HD Classic (2007) 2WD or 4WD
  • GMC Sierra 2500 (1999-2004) 2WD or 4WD
  • GMC Sierra 2500 HD (2001-2010) 2WD or 4WD
  • GMC Sierra 2500 HD Classic (2007) 2WD or 4WD
  • GMC Sierra 3500 Classic (2007) 2WD or 4WD
  • GMC Sierra 3500 HD (2007-2010) 2WD or 4WD
  • GMC Yukon XL 2500 (2001-2013) 2WD or 4WD
  • Hummer H2 (2003-2009) 2WD or 4WD

Description:



HOUSING
  • SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
  • CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.
BALL STUDS
  • SAE 4140 hot forged Chromoly Ball Studs: For the strongest possible metallurgy.
  • Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
  • Rolled Threads: Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
  • Step Threads : allows for very easy movement of hardware on install and superior holding when torqued (installer choice).
BEARING DESIGN
  • Rugged Metal to Metal Bearing
FINISH
  • Phosphate Finish: Extremely durable. Double coated. Rugged look.
HARDWARE
  • Grade 8 - Class 10.9 Hardware: Superior tensile strength.
  • Castle Nut: Industry standard where high vibration loads occur.
LUBRICATION
  • Pre threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
  • Greaseable: Because it should be.
  • Pre-Greased: Just in case you forget, we have you covered.
  • Gull Winged Grease Grooves : Allows for improved lubrication disbursement around the ball stud.
  • Zerk Fittings : Included for every application.
