AirDog II - 5G Lift Pump

Description:

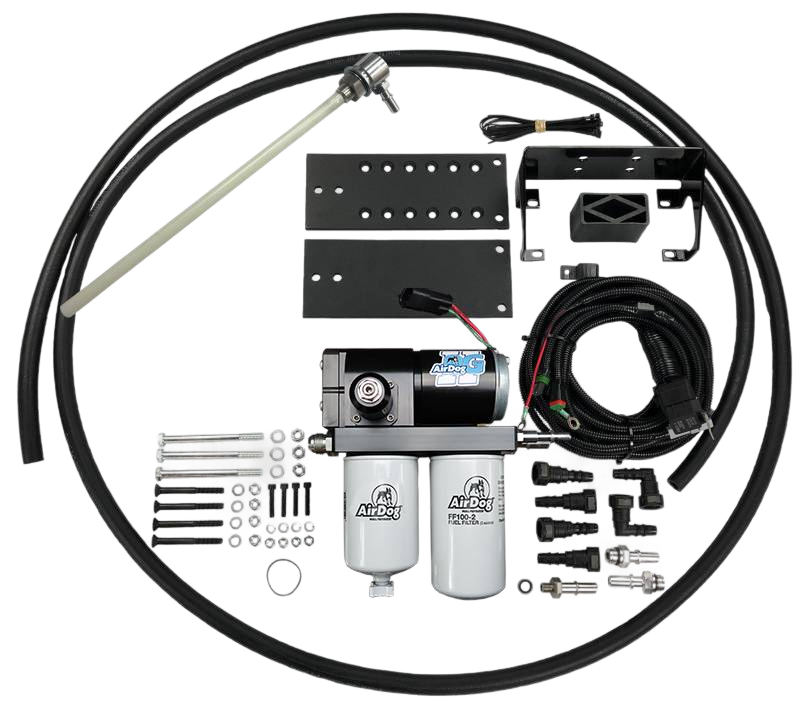

This is the AirDog® II-5G DF-100-5G fuel system for the 2004.5-2018 Dodge Ram Common Rail Cummins. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. A Fuel Module Upgrade Kit is installed in the factory fuel basket to pull fuel through a factory-style 1/2" bulkhead fitting. This will bypass the factory in-tank lift pump. The pressure side connects directly into the side of the injection pump, bypassing the factory fuel filter housing. The AirDog® Air/Vapor return is sent back to the tank through the factory 3/8” suction line once the module is modified. This is a 100GPH (Gallon Per Hour) lift pump system for stock fuel trucks. Check out our installation manual for a list of parts that are included with this kit.
