AirDog II - 5G Lift Pump

Description:

With In-Tank Fuel Pump

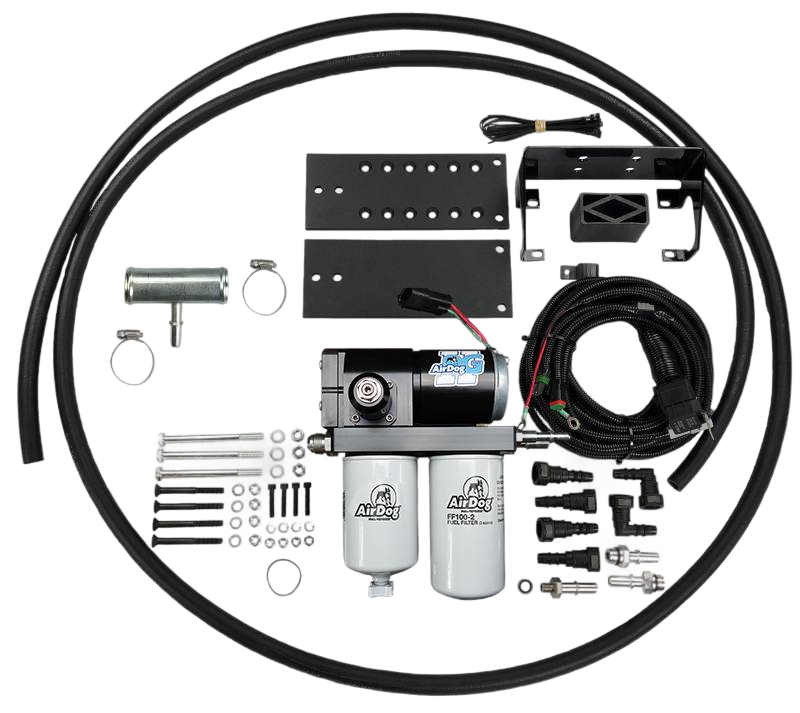

This is the AirDog® II-5G DF-100 fuel system for the 1998.5-2004 Dodge Ram VP-44 and early CP3 5.9L Cummins WITH the in-tank fuel pump. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. A Fuel Module Upgrade Kit is installed in the factory fuel basket to pull fuel through a factory-style 1/2" bulkhead fitting. This will bypass the factory in-tank lift pump. The pressure side connects directly into the side of the injection pump, bypassing the factory fuel filter housing. The AirDog® Air/Vapor return is sent back to the tank through the factory 3/8” suction line once the module is modified  This is a 100GPH (Gallon Per Hour) lift pump system for stock fuel trucks. Check out our installation manual for a list of parts that are included with this kit.

Without In-Tank Fuel Pump

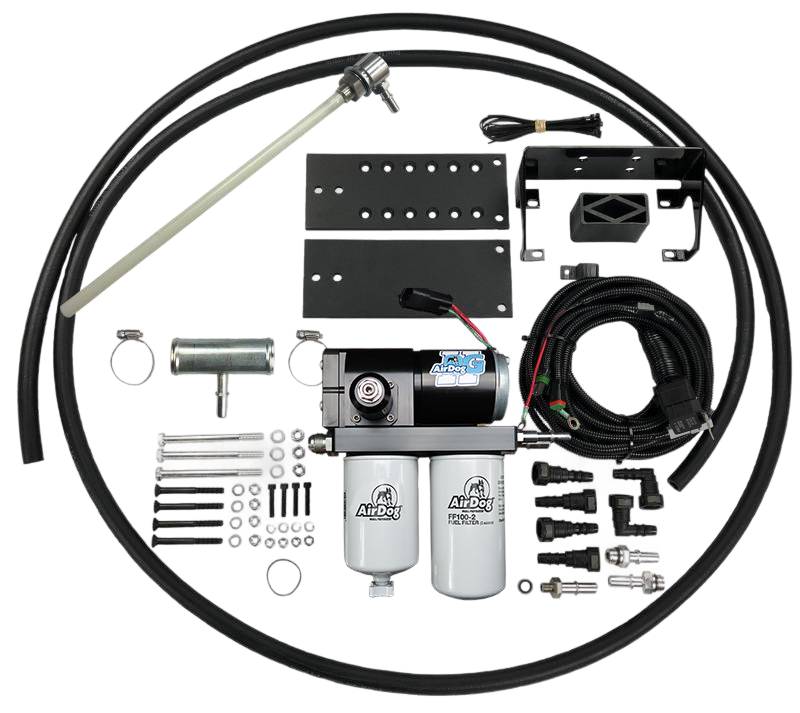

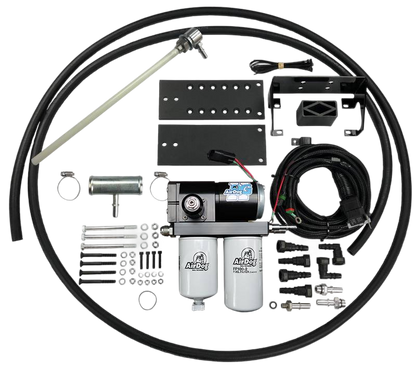

This is the AirDog® II-5G DF-100 fuel system for the 1998.5-2004 Dodge Ram VP-44 and early CP3 5.9L Without the in-tank fuel pump. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. The suction side hooks up to the factory suction fitting in the fuel module. The pressure side connects directly into the side of the injection pump, bypassing the factory fuel filter housing and factory , block mounted, fuel pump. The AirDog® Air/Vapor return is sent back to the tank through a filler neck tee. This is a 100GPH (Gallon Per Hour) lift pump system for stock fuel trucks. Check out our installation manual for a list of parts that are included with this kit.
