Riffraff Injector Cup/Sleeve Tool Set - 7.3 POWERSTROKE (1994-2003)

$ 435.00
SKU RDP73CUPTOOL

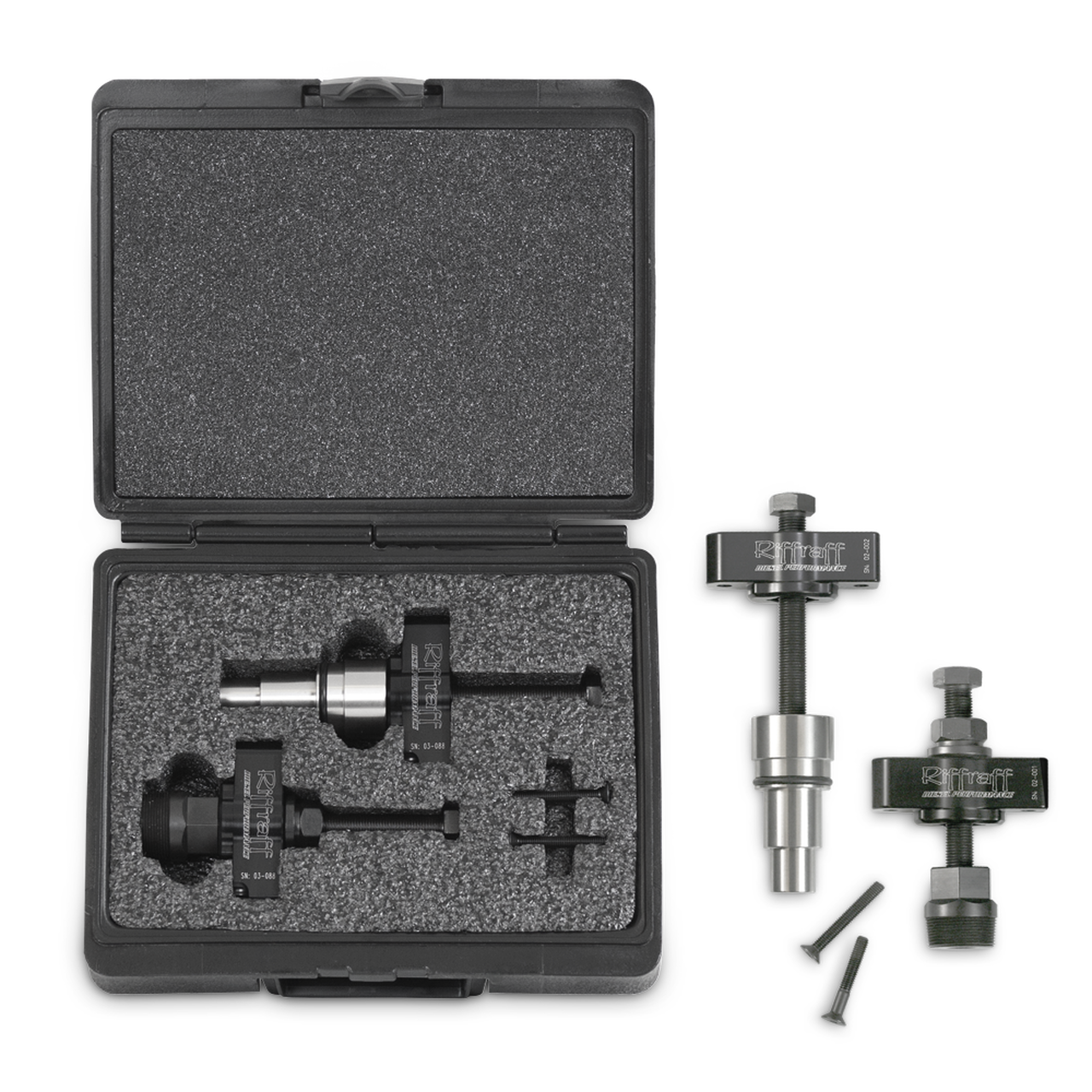

Injector Cup Tool Set

Features & Details:

  • 100% Manufactured and Assembled in the USA
  • Made from 7075 Anodized Aluminum and Coated Grade 12.9 hardware
  • Serviceable parts (if required)
  • Patented Design
  • "No Chip" Puller Design
  • "No Impact" Installer Design
  • Works on all F-Series as well as E-Series without removing heads
  • Designed to work with head bolts as well as head studs
  • Includes mounting hardware

Description:

We have refined our injector cup/sleeve tools over the last 9 years, using them ourselves and as rental units, and we have now been awarded patents on their design and released them to production. These tools were designed for 7.3L gearheads by 7.3L gearheads.

Unlike our competitors’ cup tools, our design is engineered for efficient, repeated shop use removing and installing the injector cups. We believe removing and installing the injector cups should be a more surgical operation, not something requiring beating cups in with hammers and leaving brass filings from the removal process behind. Thus we have designed our tools with tight tolerances and clean injector bores in mind.

Since we utilize the latest in metallurgical and coating technology it allows us to thread our removal tool into the damaged injector cup without creating any filings or chips to fall into your cylinders. Both our puller and installation tool use bridges that are quickly fastened to the injector mounting holes, eliminating the need to remove your rocker arms and allowing for a faster overall job.

Our Patented install tool is really the breakthrough; rather than hammering on your new cups in tight spaces and hoping they are seated, simply use a socket and allow the tool to press the cup in. The tool allows for a completely seated cup every time; no guessing and no hammering, even on the back cylinders or e-series vans. To ensure our install tool doesn't deform your new cup as our competitors’ tools do, it is machined to engage both the full surface of the cup bottom and the top lip. The tool also features an O-ring as a keeper to allow strategic placement of the cup in the injector bore instead of dropping it in and risking displacement of your sealant. In order to allow the cup to seat without turning in the head, the install tool is engineered to include a ball bearing to prevent cup rotation while being pressed in. All hardware has been coated for rust resistance as well as to achieve a Rockwell hardness of over 62 to ensure a long life.

All hardware has been coated for rust resistance as well as a Rockwell hardness of over 62 to ensure a long life.
