Rear Diesel Sending Unit - 7.3 Powerstroke (1983-1997)
Rear Diesel Sending Unit - 7.3 Powerstroke (1983-1997)
Rear Diesel Sending Unit - 7.3 Powerstroke (1983-1997)
Rear Diesel Sending Unit - 7.3 Powerstroke (1983-1997)
SKU sku-50875152073004
Regular price
$ 188.43
Regular price
Sale price
$ 188.43
Unit price
per
Rear Diesel Sending Unit (1983-1997)
The images shown are for illustration purposes only and may not be an exact representation of the product.
YOU WILL NEED A FUEL STRAINER WITH THIS KIT - ORDER HERE

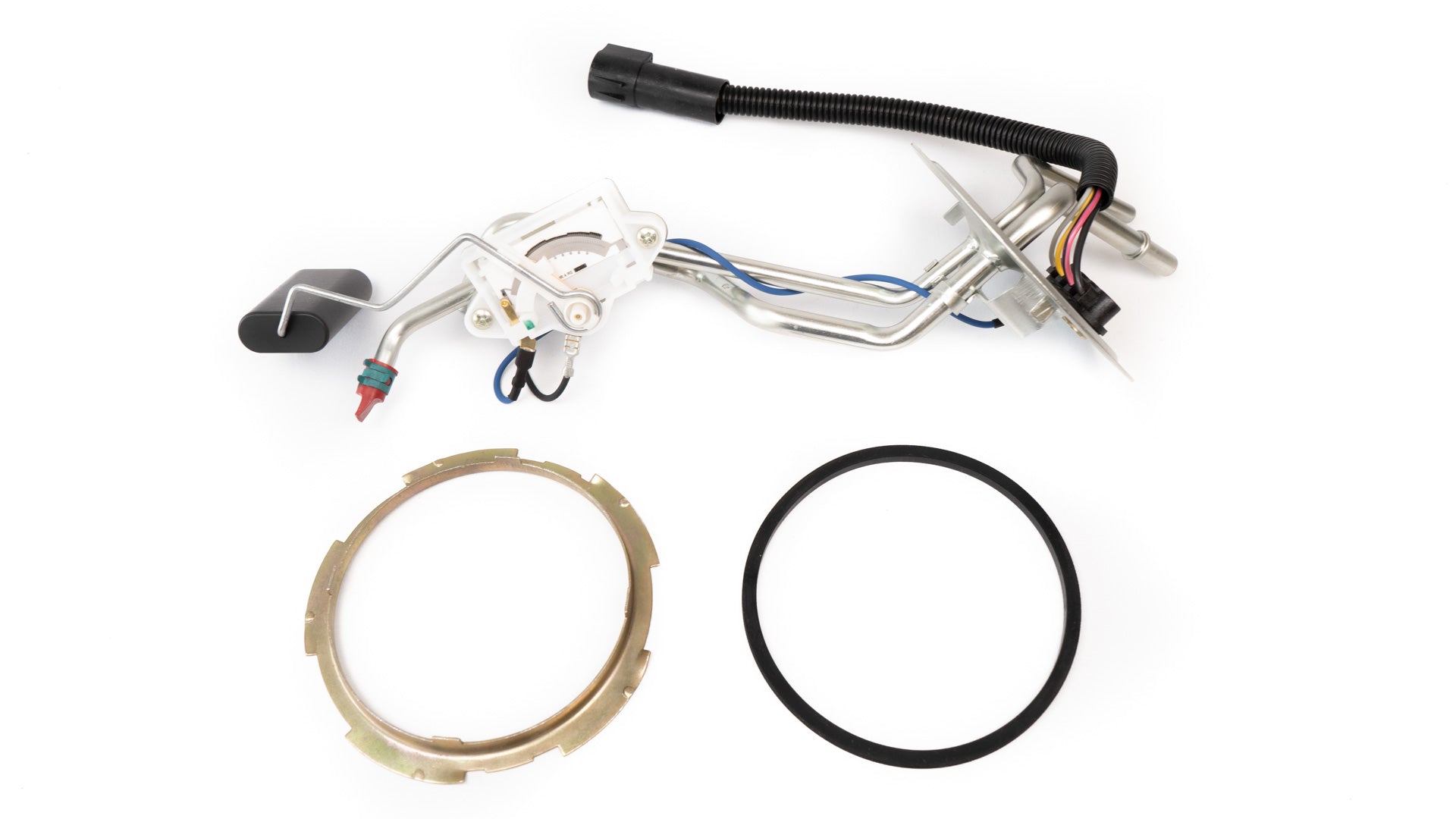

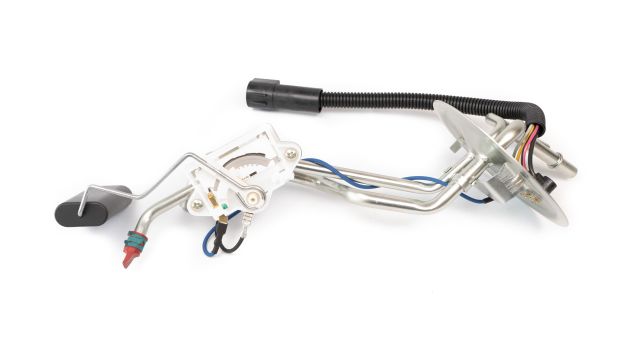

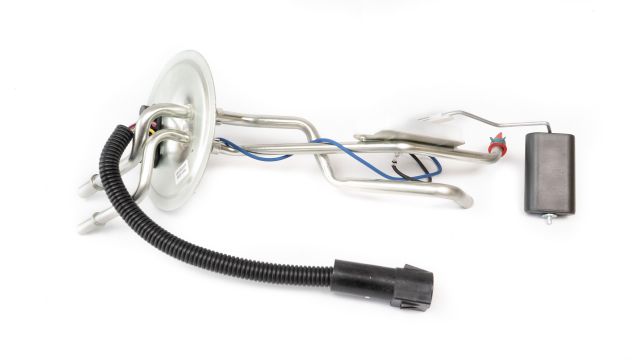

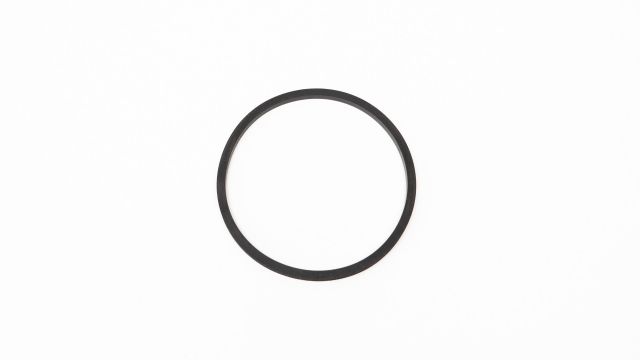

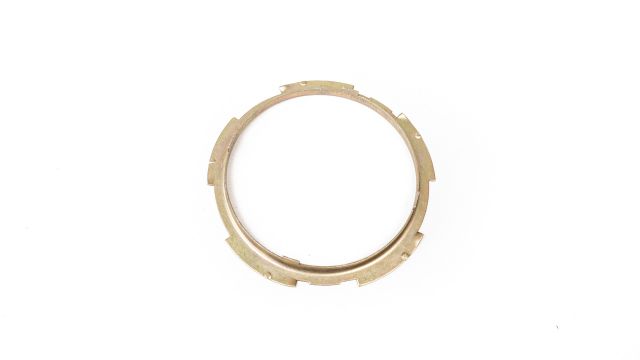

This high quality replacement rear fuel sending unit is manufactured to the original factory specifications. This comes with a new lock ring and o-ring. It does not come with a filter strainer.
Ford used the same 4-wire harness on gas and diesel engine trucks from 1994-1997. Only two wires are used in the diesels, the hot and ground, the other two are dead.
The other two wires in the harness from 1994-1997 were used when the truck had an in-tank fuel pump for the gas engines.
The two wire units on the diesel's from 1983-1993, were plugged into the two pin clip on top of the unit.
Fits:
1983-1997 Ford F250/F350 (19 gallon 7.3L DIESEL ONLY rear tank sending unit.)
**Some 1994-1996 Models have different sending unit plug ends.**
**Yellow wire = Sending Unit Hot
**Gray wire = Sending Unit Ground
**Pink/Black wire = Dead
**Black wire = Dead
**Gray wire = Sending Unit Ground
**Pink/Black wire = Dead
**Black wire = Dead
WILL NOT FIT F350 Cab & Chassis with Plastic Fuel Tanks - CAB AND CHASSIS trucks ONLY
