Extend-A-Mirror Kit - 7.3 Powerstroke (1980-1997)
Extend-A-Mirror Kit - 7.3 Powerstroke (1980-1997)
1
/
of
4
Extend-A-Mirror Kit - 7.3 Powerstroke (1980-1997)
Extend-A-Mirror Kit - 7.3 Powerstroke (1980-1997)
SKU 23-0173
Regular price
$ 95.95
Regular price
Sale price
$ 95.95
Unit price
/
per

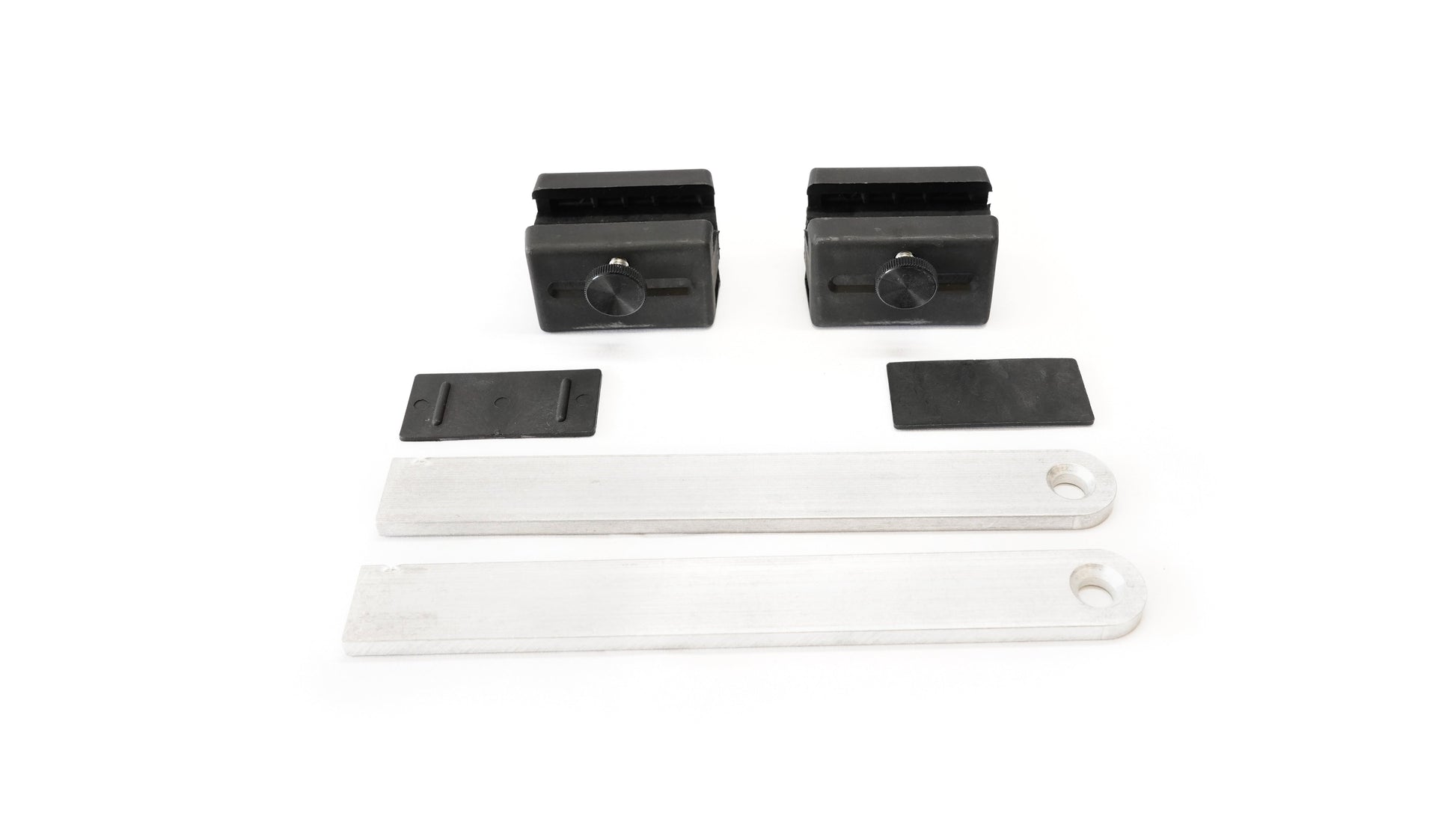

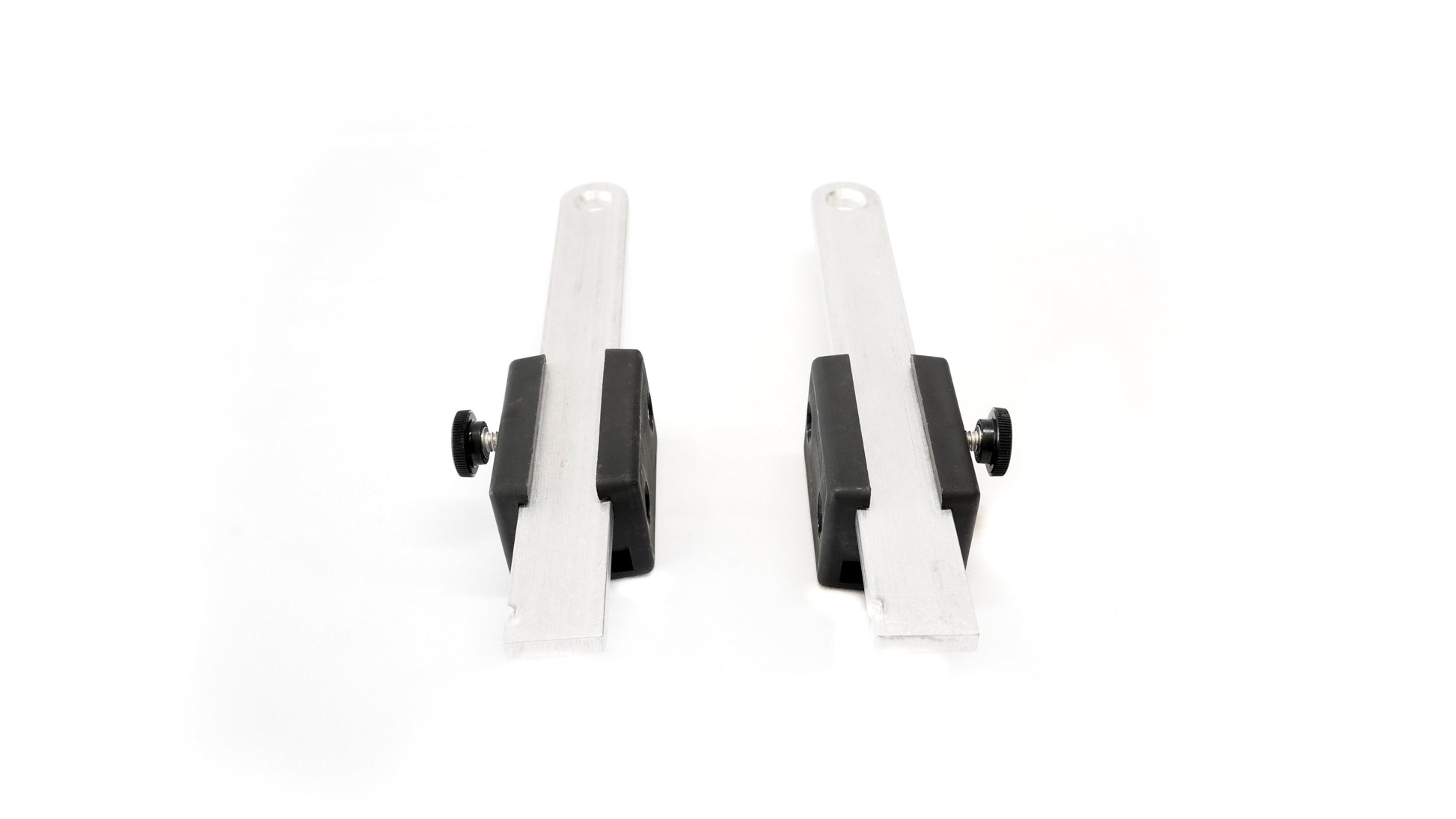

Extend-A-Mirror Kit includes two plastic blocks and two aluminum arms.

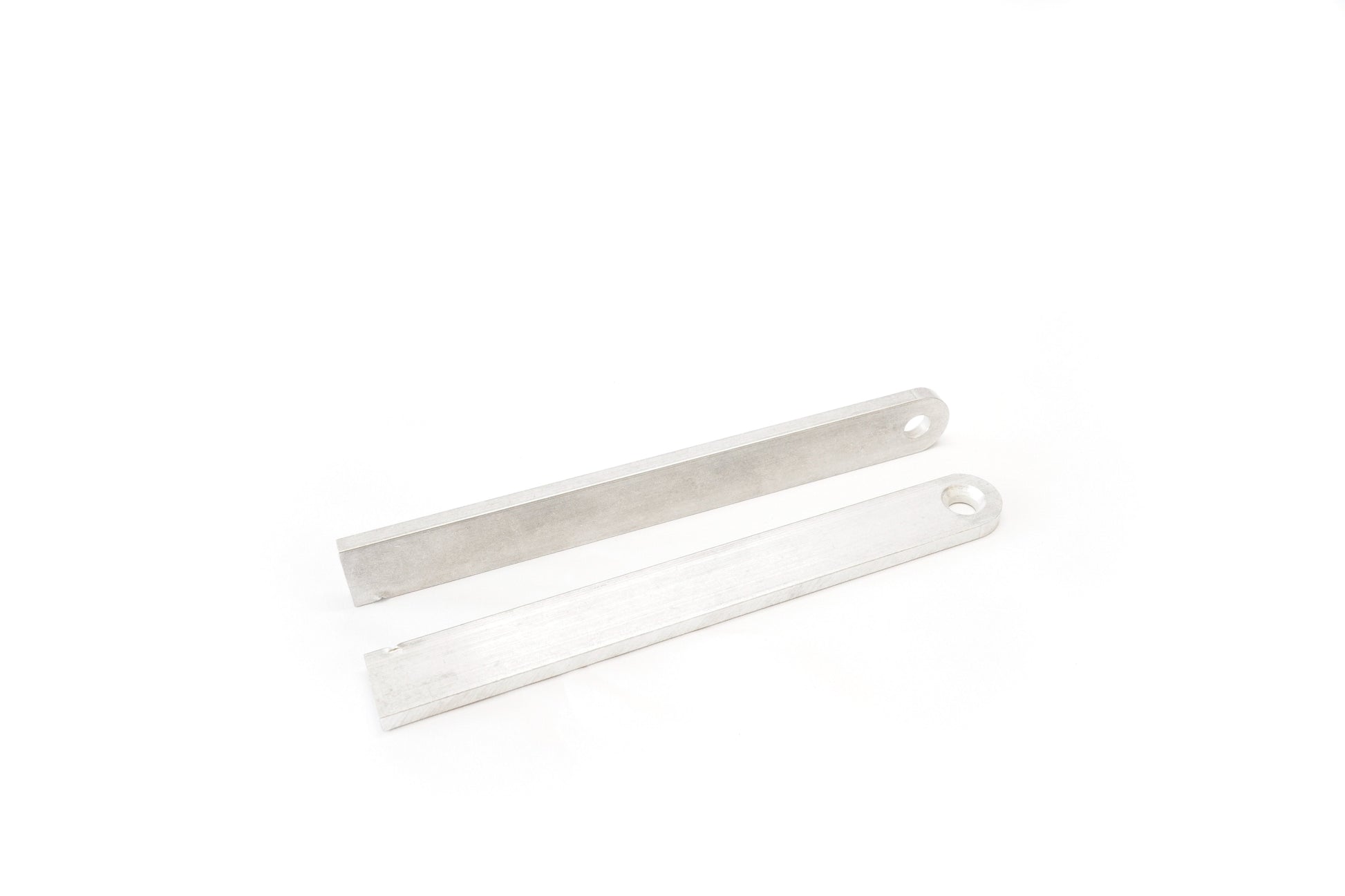

Arm Measurement: 8" Long x 1" Wide x 1/4" Thick, 5/16" Hole Size

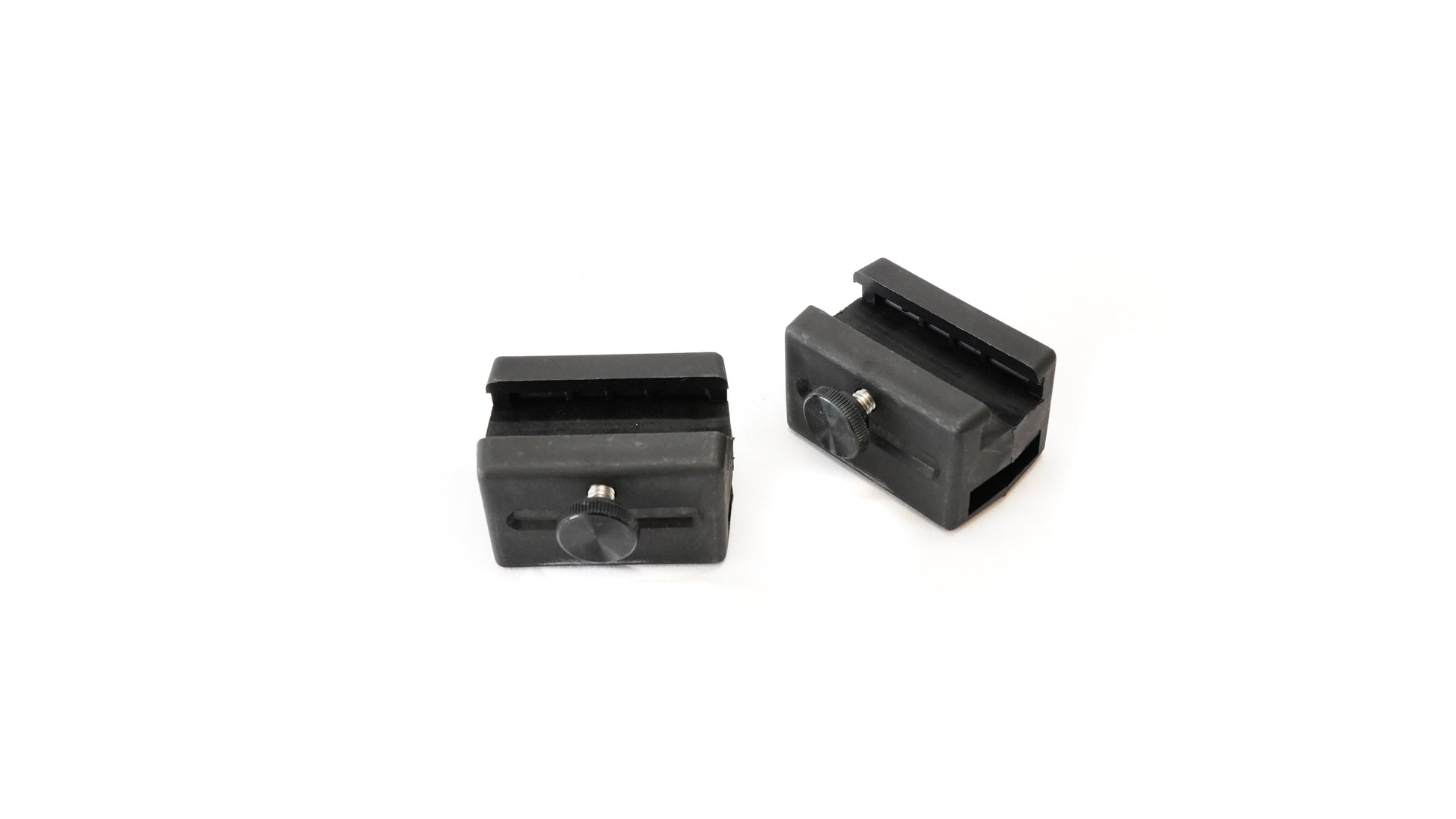

Block Measures: 2 1/4" x 1 1/2" x 1 1/2"
- Gives 5-1/2" more vision.
- Fits most 2-point low mount truck mirror
Mounting Instructions
-
Remove mirror head
-
Position Head Extender bracket (without knob) on front side of mirror support.  1980 and newer vehicles require the supplied shim.
-
Outside edge of bracket should barely cover original hole.
-
Slide 8" aluminum extension arm into bracket with the hole pointing away from vehicle.
-
Position other half of Head Extender bracket on rear side of mirror support and install cap screws.
-
Re-install mirror head to extension.
-
Adjust to desired position.
